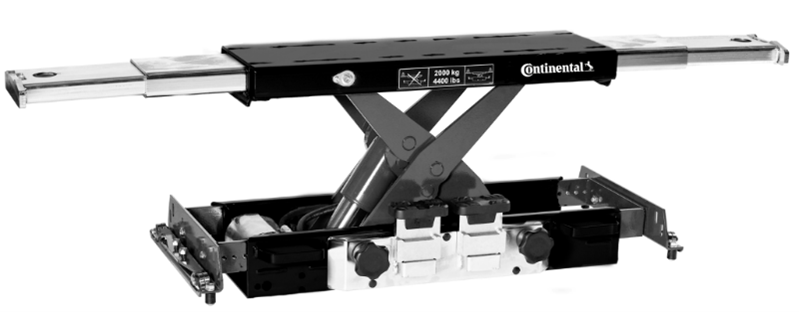

Jacking Beam
The modern vehicle is getting wider and wider still, accommodating the user's demand for comfortability and space whilst driving. Meanwhile, electric cars are becoming more popular, and the presence of batteries is slowly changing the needs of the workshop.
As a response, we introduced the new wide range of Continental jacking beam with a width of up to 1865mm. It easily reaches lifting points outside of the battery frame, ensuring that electric cars can be lifted without damaging the battery pack. Similarly, it meets the demand of modern, wider SUV’s.
The new wide jacking beam of course comes with all the popular benefits of the previous model jacking beam. It features a closed height of only 190mm optimized for low clearance vehicles, automatic safety locking device, and overload valve for optimum safety. In addition, it comes with two hand lowering operation with dead man’s release, as well as quick and reliable lifting due to the faster and more efficient pump.
Continental supply a 2000kg and 2600kg jacking beam for classes IV and VII
Technical Specifications
| Capacity | 2000kg / 2600 kg |
|---|---|
| Operation | Air / Hand Hydraulic |
| Stroke | 250 mm |
| Min. Height | 190 mm |
| Lifting arms | 780 - 1865 mm |
| Lifting frame height | 120 mm |
| Width (without mounting brackets) | 780 - 1180 mm |
| Air supply | 8 - 10 bar |
| Lifting frame depth | 250 mm |
| Air consumption | 400 - 700 l/min |
| Weight (without mounting brackets) | 120 kg |
Features :
- Flexible top support beam can be extended up to 1865 mm
- Closed height of only 190mm optimal for vehicles with a low clearance
- Quick and reliable lifting due to the faster and more efficient pump
- Unique height adjustable mounting bracket system to fit any lift
- Two-hand lowering operation with dead man’s release
| Product code | ||
|---|---|---|
| 2910003174600 | JB320AS | Air Hydraulic 2.0t |
| 2910003174700 | JB320HS | Hand Hydraulic 2.0t |
| 2910003174800 | JB326AS | Air Hydraulic 2.6t |
| 2910003174900 | JB326HS | Hand Hydraulic 2.6t |
| 2910003175000 | JB320AW | Air Hydraulic 2.0t |
| 2910003175100 | JB320HW | Hand Hydraulic 2.0t Wide |
| 2910003175200 | JB326AW | Air Hydraulic 2.6t Wide |
| 2910003175300 | JB326HW | Hand Hydraulic 2.6t Wide |
| Product code | |
|---|---|
| 2910002237800 | Jacking beam arm kit 2/2.6T beam NT scissor lift |
| 2910002237900 | Jacking beam arm kit 2/2.6T beam 4 post lift |
| 2910002238000 | Jacking beam arm kit 2/2.6T beam pit usage lip arm (angle iron) |
| 2910002238100 | Jacking beam arm kit 2/2.6T beam preformed pit arm |
